Product Details
＋DESCRIPTION

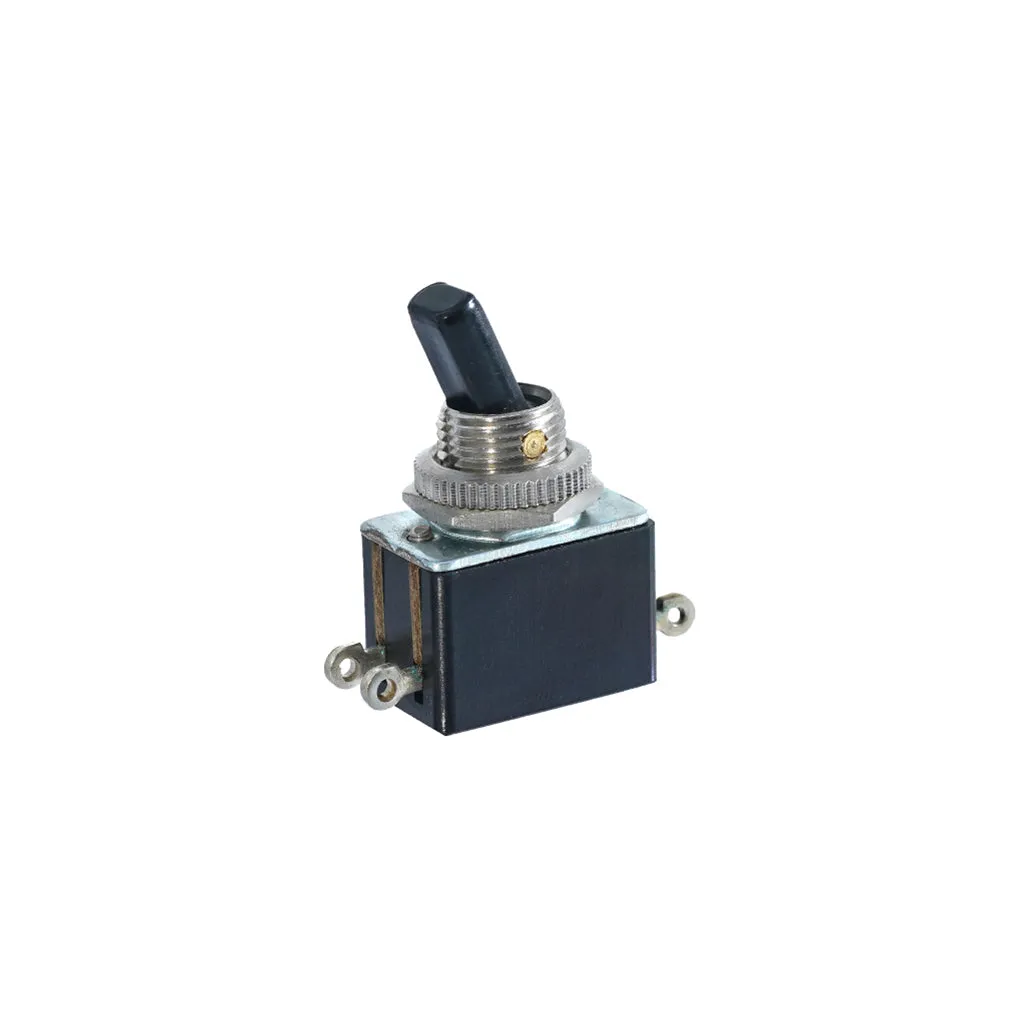

SE613 Toggle Switch 5A SPDT is used in applications like application in general industrial equipment and home appliances. It has a long life, a high number of operations
FEATURES
- HV Breakdown Test 1 KV AC For 1 Minute
- Contact Rating 1.5 A 250 VAC
- Contact Resistance <10m ohm
- Insulation Resistance > 100m ohm
- Operating Force 800 Gms Approx.
- Mechanical Life (No. Of Operations) 50,000 Operations
- Electrical Life (No. Of Operations) 10,000 Operations
- Ambient Temperature -25 ° C to 80 ° C
- Mounting Arrangement Panel Mounting, Chassis Mounting
- Body Color Black
- Housing Material Electrical Grade Phenolic
- Toggle Knob Material Polyamide 66 UL 94 V3 / Brass Chrome Plated
- Terminals Material Brass Silver Plated
- Terminal Type Solder
- Button Colors Available Black
- White
- Red
- Yellow
- Green
- Blue
- Housing Colors Available Black
